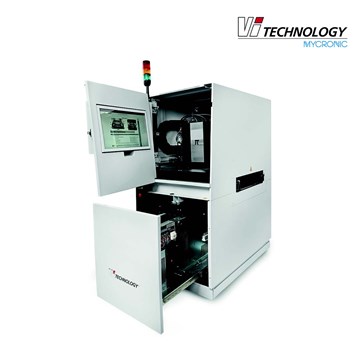

3D SPI π Series

Product Enquiry



Specifications:

PCB handling
 PI PICO / PI PRIMO
 PI PRIMO
 Minimum PCB dimensions (L x W) 50 mm x 50 mm (2 x 2 inch)
 PCB thickness 0.1 mm to 5.0 mm
 Minimum edge clearance 3 mm
 Top clearance   20 mm
 Bottom clearance  50 mm
 Conveying direction Left to right - Right to left - Left to left - Right to right
  S M
XL
 Minimum PCB dimensions (L x W)  350 x 533 mm (14 x 21 inch) 533 x 533 mm (21 x 21 inch)  609 x 533 mm (24 x 21 inch) 762 x 533 mm (30 x 21 inch)
 Conveying height 830 mm to 930 mm (Standard) / 900 mm to 1000 mm (Option)
 Conveyor lenght  1000 mm (800 mm option) 1000 mm 1000 mm 1250 mm
 Maximum PCB weight 4 kg 4, 5 kg
