Molding Liner

Product Enquiry

Characteristics of Molding Liner

Contribute to:

 Cost Reduction  One sheets will be equivalent with 2 dummy frames or substrates
 Time Saving  Reduce handling time for cleaning process
 Cleaning Effect  Cleaning cavity, air-vent, gate, etc
 Process Simplification  One sheet approximate placement only
 Easy Disposal  No separation into frame and compound
 Standardization  One size can be used for different designed die sets
 Unskilled  Minimal scraping of remaining compound

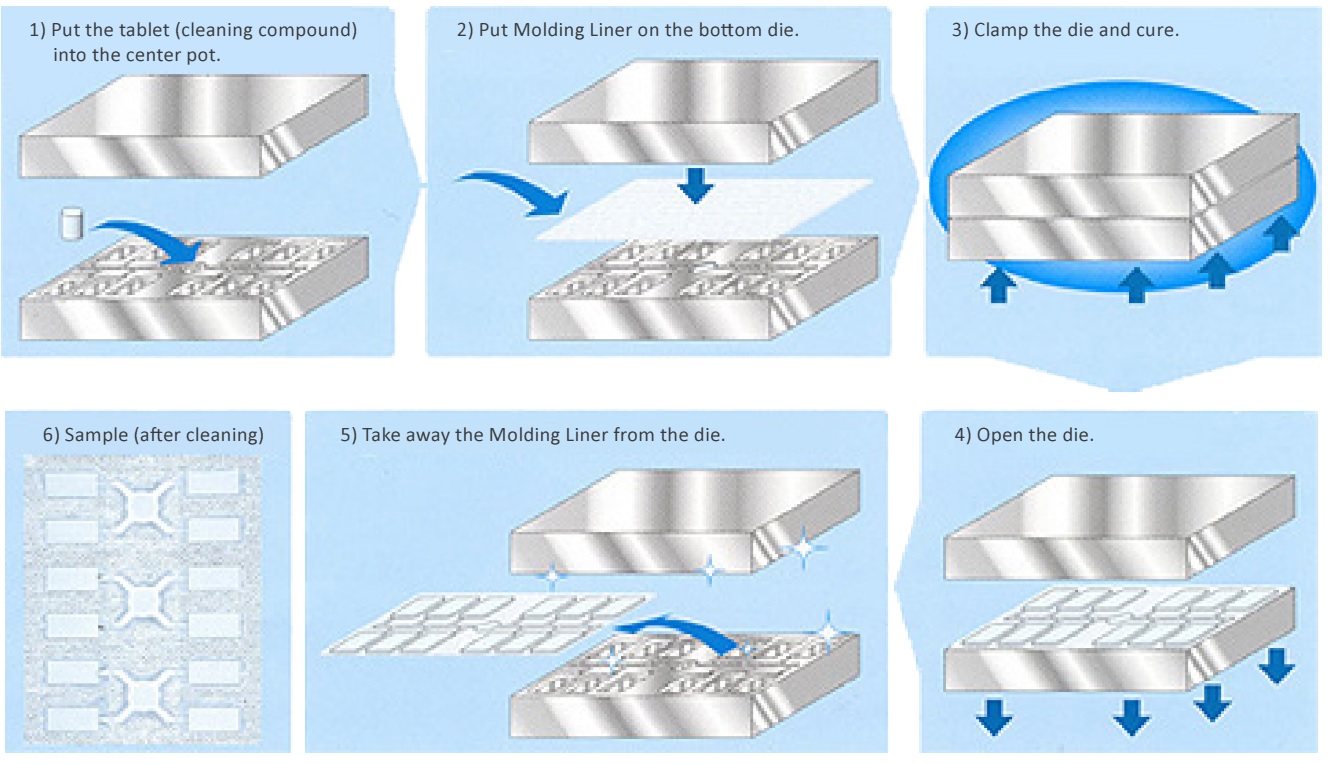

How to Use

This sheet can be used without dummy frame, typically will not require change of condition for cleaning process.


Specification

Specification Article No.  Weight
(g/m2
Thickness
(mm)
Mesh Dry (N/50mm)
Tensile Strength (dry-N50mm)
DRY (%)
 Breaking Elongation (Dry.%)
M.D   C.D M.D  C.D
Thin Type  PO500 50.0  0.20 - 57.34 24.89 4.6 6.1
Standard Type BA839 82.5 0.47 90 118.03 38.29 27.3 93.9
