Features:
OnFILTER filters utilize proprietary technology to provide maximum noise suppression in actual installations, not just in the controlled laboratory environment.
- Easy plug-in installation.

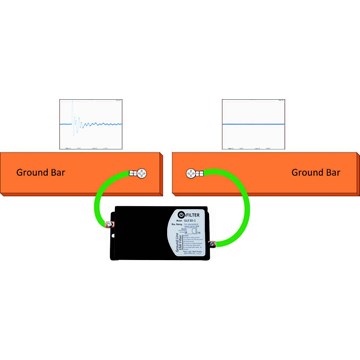

- Optimized for ground lines.
- Effective noise suppression for all types of noise.
- Application for equipment with current consumption up to 30A .
Specifications:
Parameter | Value |
Rated Max. Current, RMS | 30A |
Power Line Frequency | 50/60 Hz |
DC Resistance | <1 Ohm |
External Wire Gage | AWG14...6 1.6....4.1mm diameter |
Dimensions (WxDxH) | 2.56”x5.63”x1.75” |
please download separate datasheet for more details.
